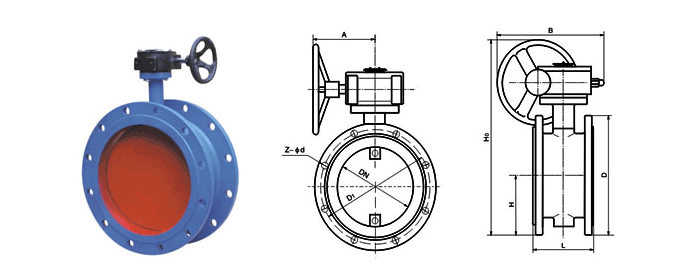

| 法蘭式通風型蝶閥 |
| 發表時間：2011-5-25 文字 〖 大 中 小 〗 閱讀次數：5904 [關閉窗口] |
|
 |
|
通經DN |
L |
D1 |
D |
Z-d |
H |
H0 |
A |
B |
WT/Kgs |
| 50 |
108 |
110 |
140 |
4-14 |
79 |
215 |
270 |
65 |
9 |
| 65 |
112 |
130 |
160 |
4-14 |
80 |
235 |
270 |
65 |
12 |
| 80 |
124 |
150 |
190 |
4-18 |
95 |
263 |
270 |
65 |
15 |
| 100 |
127 |
170 |
210 |
4-18 |
105 |
283 |
270 |
65 |
17 |
| 125 |
140 |
200 |
240 |
8-18 |
120 |
313 |
310 |
65 |
23 |
| 150 |
140 |
225 |
265 |
8-18 |
132.5 |
338 |
310 |
65 |
25 |
| 200 |
152 |
280 |
320 |
8-18 |
160 |
493 |
365 |
90 |
42 |
| 250 |
165 |
335 |
375 |
12-18 |
187.5 |
550 |
365 |
90 |
60 |
| 300 |
178 |
395 |
440 |
12-22 |
220 |
615 |
365 |
90 |
80 |
| 350 |
190 |
445 |
490 |
12-22 |
245 |
678 |
365 |
90 |
100 |
| 400 |
216 |
495 |
540 |
16-22 |
270 |
727 |
365 |
90 |
120 |
| 450 |
222 |
550 |
595 |
16-22 |
297.5 |
782 |
365 |
90 |
160 |
|
通經DN |
L |
D1 |
D |
Z-d |
H |
H0 |
A |
B |
D0 |
WT/Kgs |
| 50 |
108 |
110 |
140 |
4-14 |
70 |
443 |
193 |
125 |
80 |
51 |
| 65 |
112 |
130 |
160 |
4-14 |
80 |
463 |
193 |
125 |
80 |
62 |
| 80 |
114 |
150 |
190 |
4-18 |
95 |
483 |
193 |
125 |
80 |
73.5 |
| 100 |
127 |
170 |
210 |
4-18 |
105 |
498 |
193 |
125 |
80 |
87 |
| 125 |
140 |
200 |
240 |
8-18 |
120 |
682 |
193 |
245 |
150 |
98 |
| 150 |
140 |
225 |
265 |
8-18 |
132.5 |
736 |
193 |
245 |
150 |
102 |
| 200 |
152 |
280 |
320 |
8-18 |
160 |
800 |
283 |
245 |
150 |
150 |
| 250 |
165 |
335 |
375 |
12-18 |
187.5 |
895 |
283 |
313 |
200 |
170 |
| 300 |
178 |
395 |
440 |
12-22 |
220 |
956 |
334 |
313 |
200 |
220 |
| 350 |
190 |
445 |
490 |
12-22 |
245 |
1029 |
334 |
313 |
250 |
350 |
| 400 |
216 |
495 |
540 |
16-22 |
270 |
1103 |
425 |
313 |
250 |
430 |
| 450 |
222 |
550 |
595 |
16-22 |
297.5 |
1280 |
425 |
439 |
300 |
550 |
| 500 |
229 |
600 |
645 |
20-22 |
322.5 |
1186 |
425 |
431 |
360 |
580 |
| 600 |
267 |
705 |
755 |
20-26 |
377.5 |
1321 |
425 |
556 |
360 |
850 |
| 700 |
292 |
810 |
860 |
24-26 |
430 |
1431 |
620 |
556 |
360 |
950 |
| 800 |
318 |
920 |
975 |
24-30 |
487.5 |
1542 |
620 |
556 |
360 |
1150 |
| 900 |
330 |
1020 |
1075 |
24-30 |
537.5 |
1800 |
620 |
706 |
360 |
1750 |
| 1000 |
410 |
1120 |
1175 |
28-30 |
587.5 |
2363 |
620 |
706 |
360 |
2100 |
| 1200PN0.6 |
470 |
1340 |
1405 |
32-33 |
702.5 |
2583 |
620 |
706 |
360 |
2580 |
| 1200PN0.25 |
470 |
1320 |
1375 |
32-30 |
687.5 |
|
|
|
|
|
| 1400 |
530 |
|
1420 |
36-30 |
|
|
|
|
|
|
| 1600 |
600 |
|
1620 |
40-33 |
|
|
|
|
|
|
| 1800 |
670 |
|
1820 |
44-39 |
|
|
|
|
|
|
| 2000 |
760 |
|
2020 |
48-42 |
|
|
|
|
|
