| 德標波紋管截止閥 |
| 發表時間：2011-5-26 文字 〖 大 中 小 〗 閱讀次數：7070 [關閉窗口] |
|
 |
|
公稱通經DN |

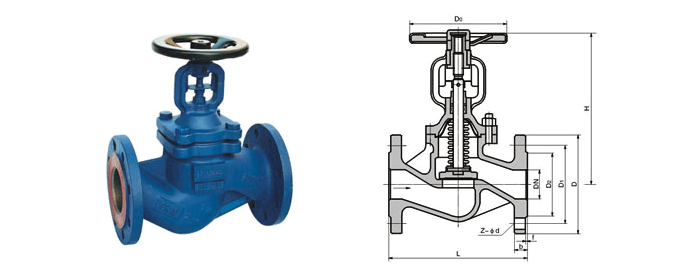

主要外形尺寸和連接尺寸 |
WT(kg) |
| L |
D |
D1 |
D2 |
B |
F |
Z-ØD |
H |
H1 |
D0 |
| DIN/WJ41H-16C DIN/WJ41H-16P |
| 15 |
130 |
95 |
65 |
45 |
16 |
2 |
4-Ø14 |
191 |
197 |
120 |
5 |
| 20 |
150 |
105 |
75 |
58 |
18 |
2 |
4-Ø14 |
191 |
197 |
140 |
7 |
| 25 |
160 |
115 |
85 |
68 |
18 |
2 |
4-Ø14 |
197 |
205 |
140 |
9 |
| 32 |
180 |
140 |
100 |
78 |
18 |
2 |
4-Ø18 |
200 |
208 |
160 |
12 |
| 40 |
200 |
150 |
110 |
88 |
18 |
3 |
4-Ø18 |
218 |
231 |
200 |
16 |
| 50 |
230 |
165 |
125 |
102 |
20 |
3 |
4-Ø18 |
220 |
233 |
200 |
19 |
| 65 |
290 |
185 |
145 |
122 |
18 |
3 |
4-Ø18 |
238 |
254 |
240 |
23 |
| 80 |
310 |
200 |
160 |
138 |
20 |
3 |
8-Ø18 |
257 |
277 |
240 |
30 |
| 100 |
350 |
220 |
180 |
158 |
20 |
3 |
8-Ø18 |
340 |
365 |
320 |
42 |
| 125 |
400 |
250 |
210 |
188 |
22 |
3 |
8-Ø18 |
360 |
392 |
360 |
63 |
| 150 |
480 |
285 |
240 |
212 |
22 |
3 |
8-Ø22 |
390 |
420 |
360 |
90 |
| 200 |
600 |
340 |
295 |
268 |
24 |
3 |
12-Ø22 |
530 |
580 |
500 |
150 |
| DIN/WJ41H-25 DIN/WJ41H-25P |
| 15 |
130 |
95 |
65 |
45 |
16 |
2 |
4-Ø14 |
191 |
197 |
120 |
5 |
| 20 |
150 |
105 |
75 |
58 |
18 |
2 |
4-Ø14 |
191 |
197 |
160 |
7 |
| 25 |
160 |
115 |
85 |
68 |
18 |
2 |
4-Ø14 |
197 |
205 |
160 |
9 |
| 32 |
180 |
140 |
100 |
78 |
18 |
2 |
4-Ø18 |
200 |
208 |
160 |
12 |
| 40 |
200 |
150 |
110 |
88 |
18 |
3 |
4-Ø18 |
218 |
231 |
200 |
19 |
| 50 |
230 |
165 |
125 |
102 |
20 |
3 |
4-Ø18 |
220 |
233 |
200 |
24 |
| 65 |
290 |
185 |
145 |
122 |
22 |
3 |
8-Ø18 |
238 |
254 |
280 |
33 |
| 80 |
310 |
200 |
160 |
138 |
24 |
3 |
8-Ø18 |
257 |
277 |
280 |
44 |
| 100 |
350 |
235 |
220 |
162 |
24 |
3 |
8-Ø22 |
340 |
365 |
320 |
60 |
| 125 |
400 |
270 |
250 |
188 |
26 |
3 |
8-Ø26 |
360 |
392 |
360 |
72 |
| 150 |
480 |
300 |
295 |
218 |
28 |
3 |
8-Ø26 |
390 |
420 |
360 |
98 |
| 200 |
600 |
360 |
310 |
278 |
30 |
3 |
12-Ø26 |
530 |
580 |
500 |
169 |
| DIN/WJ41H-40 DIN/WJ41H-40P |
| 15 |
130 |
95 |
65 |
45 |
16 |
2 |
4-Ø14 |
191 |
197 |
120 |
5 |
| 20 |
150 |
105 |
75 |
58 |
18 |
2 |
4-Ø14 |
191 |
197 |
160 |
7 |
| 25 |
160 |
115 |
85 |
68 |
18 |
2 |
4-Ø14 |
197 |
205 |
160 |
9 |
| 32 |
180 |
140 |
100 |
78 |
18 |
2 |
4-Ø18 |
200 |
208 |
160 |
12 |
| 40 |
200 |
150 |
110 |
88 |
18 |
3 |
4-Ø18 |
218 |
231 |
200 |
16 |
| 50 |
230 |
165 |
125 |
102 |
20 |
3 |
4-Ø18 |
220 |
233 |
200 |
23 |
| 65 |
290 |
185 |
145 |
122 |
22 |
3 |
8-Ø18 |
238 |
254 |
280 |
33 |
| 80 |
310 |
200 |
160 |
138 |
24 |
3 |
8-Ø18 |
257 |
277 |
280 |
45 |
| 100 |
350 |
235 |
220 |
162 |
24 |
3 |
8-Ø22 |
340 |
365 |
320 |
69 |
| 125 |
400 |
270 |
250 |
188 |
26 |
3 |
8-Ø26 |
360 |
392 |
360 |
98 |
| 150 |
480 |
300 |
295 |
218 |
28 |
3 |
8-Ø26 |
390 |
430 |
360 |
170 | 文章分頁：1
|
|
|
|
|
