公稱通經 DN	L	L1	DO	DN (Outlet)	WT(KG)
					1.6MPa	2.5MPa	4.0MPa	6.4MPa
A41H-16C A41H-25 A41H-40 A41H-64 A41H-16P A41H-25P A41H-40P A41H-64P
25	100	85	20	25	7	10	11	20
32	115	100	25	32	15	15	15	25
40	120	110	32	40	20	20	20	31
50	135	120	40	50	25	25	25	35
65	140	130	50	65	40	47	54	60
80	160	135	65	80	52	65	70	75
100	170	160	80	100	70	75	78	86
125	190	190	100	125	95	101	110	122
150	205	195	125	150	132	140	151	170
200	240	230	150	200	168	182	194	210

公稱通經 DN	L	L1	DO	DN (Outlet)	WT(KG)
					1.6MPa	2.5MPa	4.0MPa
A47H-16C A47H-25 A47H-40A47Y-16P A47Y-25P A47Y-40P
25	100	100	20	25	10	10	11
32	115	105	25	32	16	16	18
40	120	110	32	40	20	20	25
50	135	120	40	50	30	30	30
80	160	135	65	80	52	52	70
100	170	160	80	100	70	70	95

公稱通經 DN	L	L1	DO	DN (Outlet)	WT(KG)
					1.6MPa	2.5MPa	4.0MPa	6.4MPa
25	100	85	20	25	7	10	11	20
32	115	100	25	32	15	15	15	25
40	120	110	32	40	20	20	20	31
50	135	120	40	50	25	25	25	35
65	140	130	50	65	40	47	54	60
80	160	135	65	80	52	65	70	75
100	170	160	80	100	70	75	78	86
125	190	190	100	125	95	101	110	122
150	205	195	125	150	132	140	151	170
200	240	230	150	200	168	182	194	210

公稱通經 DN	L	L1	DO	DN (Outlet)	WT(KG)
					1.6MPa	2.5MPa	4.0MPa
25	100	85	20	25	10	10	11
32	115	100	25	32	16	16	18
40	120	110	32	40	20	20	25
50	135	120	40	50	30	30	30
80	160	135	65	80	52	52	70
100	170	160	80	100	70	70	95

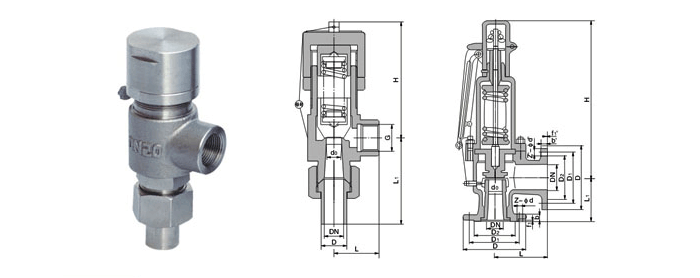

微啟式管道安全閥

公稱通經 DN	PN1.6/2.5/4.0MPa					WT(KG)
	L	L1	DO	D	DN(Outlet)
15	35	65	12	20	G5/8m	4
20	43	76	16	25	G3/4m	5
25	50	84	20	31	G1m	7
32	55	85	25	ZGI1/4m	GI1/4m	11
40	55	84	32	ZGI1/2m	GI1/2m	16
50	67	101	40	AG2m	G2m	23
65	76	120	50	ZGI2 1/2m	GI2 1/2m	27
80	83	135	65	ZG3m	G3m	40
