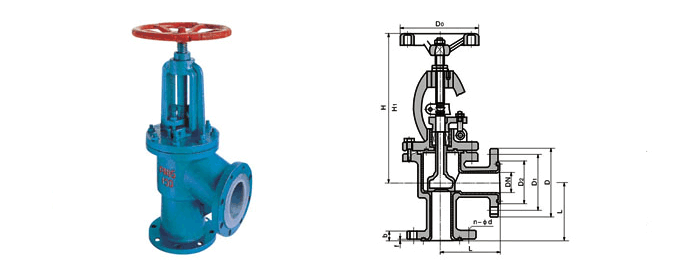

| 國標氟襯里角式截止閥 |
| 發表時間：2011-5-26 文字 〖 大 中 小 〗 閱讀次數：7124 [關閉窗口] |
|
 |
| 設計規范 |
結構長度 |
連接法蘭 |
試驗與檢驗 |
產品標識 |
供貨規范 |
GB/T 12233
GB/T 12235 |
GB/T 12221 |
JB/T78;JB/T79 |
GB/T 13927 |
GB/T 12220 |
JB/T7928 |
|
DN(mm) |
NPS(inch) |
L |
D |
D1 |
D2 |
F |
B |
N-ØD |
D0 |
H |
H1 |
WT(kg) |
| PN1.0MPa |
| 15 |
1/2 |
90 |
95 |
65 |
45 |
2 |
14 |
4-Ø14 |
100 |
240 |
265 |
7 |
| 20 |
3/4 |
95 |
105 |
75 |
55 |
2 |
16 |
4-Ø14 |
100 |
245 |
270 |
7.5 |
| 25 |
1 |
100 |
115 |
85 |
65 |
2 |
16 |
4-Ø14 |
120 |
250 |
275 |
8 |
| 32 |
1 1/4 |
105 |
135 |
100 |
78 |
2 |
18 |
4-Ø18 |
120 |
260 |
290 |
12 |
| 40 |
1 1/2 |
115 |
145 |
110 |
85 |
3 |
18 |
4-Ø18 |
140 |
290 |
325 |
14 |
| 50 |
2 |
125 |
160 |
125 |
100 |
3 |
20 |
4-Ø18 |
140 |
300 |
335 |
19 |
| 65 |
2 1/2 |
145 |
180 |
145 |
120 |
3 |
20 |
4-Ø18 |
160 |
355 |
400 |
27 |
| 80 |
3 |
155 |
195 |
160 |
135 |
3 |
22 |
4-Ø18 |
160 |
400 |
450 |
42 |
| 100 |
4 |
175 |
215 |
180 |
155 |
3 |
22 |
8-Ø18 |
180 |
455 |
495 |
50 |
| 125 |
5 |
200 |
245 |
210 |
185 |
3 |
24 |
8-Ø18 |
180 |
530 |
560 |
64 |
| 150 |
6 |
225 |
280 |
240 |
210 |
3 |
24 |
8-Ø23 |
240 |
605 |
650 |
85 |
| 200 |
8 |
275 |
335 |
295 |
265 |
3 |
26 |
8-Ø23 |
240 |
650 |
770 |
105 |
| 250 |
10 |
325 |
390 |
350 |
320 |
3 |
28 |
12-Ø23 |
280 |
680 |
800 |
135 |
| 300 |
12 |
375 |
440 |
400 |
368 |
4 |
28 |
12-Ø23 |
280 |
710 |
835 |
165 |
| PN1.6MPa |
| 15 |
1/2 |
90 |
95 |
65 |
45 |
2 |
14 |
4-Ø14 |
100 |
240 |
265 |
7 |
| 20 |
3/4 |
95 |
105 |
75 |
55 |
2 |
16 |
4-Ø14 |
100 |
245 |
270 |
7.5 |
| 25 |
1 |
100 |
115 |
85 |
65 |
2 |
16 |
4-Ø14 |
120 |
250 |
275 |
8.8 |
| 32 |
1 1/4 |
105 |
135 |
100 |
78 |
2 |
18 |
4-Ø18 |
140 |
260 |
290 |
12 |
| 40 |
1 1/2 |
115 |
145 |
110 |
85 |
3 |
18 |
4-Ø18 |
140 |
285 |
320 |
14 |
| 50 |
2 |
125 |
160 |
125 |
100 |
3 |
20 |
4-Ø18 |
160 |
300 |
335 |
19 |
| 65 |
2 1/2 |
145 |
180 |
145 |
120 |
3 |
20 |
4-Ø18 |
180 |
355 |
400 |
27 |
| 80 |
3 |
155 |
195 |
160 |
135 |
3 |
22 |
8-Ø18 |
240 |
400 |
450 |
42 |
| 100 |
4 |
176 |
215 |
180 |
155 |
3 |
24 |
8-Ø18 |
240 |
455 |
495 |
50 |
| 125 |
5 |
200 |
245 |
210 |
185 |
3 |
26 |
8-Ø18 |
280 |
530 |
560 |
64 |
| 150 |
6 |
225 |
280 |
240 |
210 |
3 |
28 |
8-Ø23 |
320 |
610 |
650 |
85 |
| 200 |
8 |
275 |
335 |
295 |
265 |
3 |
30 |
8-Ø23 |
360 |
650 |
770 |
155 |
| PN2.5MPa |
| 15 |
1/2 |
90 |
95 |
65 |
45 |
2 |
14 |
4-Ø14 |
120 |
245 |
270 |
7.5 |
| 20 |
3/4 |
95 |
105 |
75 |
55 |
2 |
16 |
4-Ø14 |
120 |
250 |
275 |
8.5 |
| 25 |
1 |
100 |
115 |
85 |
65 |
2 |
16 |
4-Ø14 |
140 |
260 |
290 |
11 |
| 32 |
1 1/4 |
105 |
135 |
100 |
78 |
2 |
18 |
4-Ø18 |
160 |
290 |
325 |
13 |
| 40 |
1 1/2 |
115 |
145 |
110 |
85 |
3 |
18 |
4-Ø18 |
180 |
300 |
335 |
18 |
| 50 |
2 |
125 |
160 |
125 |
100 |
3 |
20 |
4-Ø18 |
180 |
365 |
400 |
31 | 文章分頁：1
|
|
|
|
|
